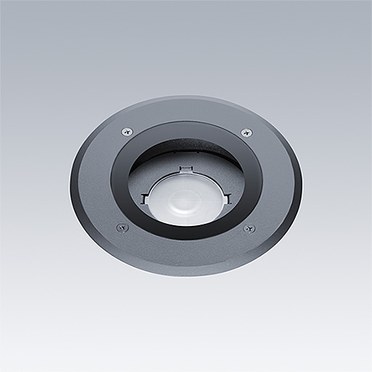

Cesar Opera

Installation et montage

Pour un montage dans le sol avec boîtier encastré inclus.

Taille maximale de câble :
Cesar Opera S/M HF : 3 x 1 mm² - 3 x 2,5 mm². Pré-câblé : 0,5 m
Cesar Opera S/M RD : 2 x 1 mm² - 2 x 2,5 mm². Pré-câblé : 0,5 m
Cesar Opera L/XL HFX : 5 x 1 mm² - 5 x 2,5 mm². Pré-câblé : 0,2 m
Axyl Opera L 5D : 4 x 1 mm² - 4 x 2,5 mm². Pré-câblé : 0,2 m

Le convertisseur à distance DALI-2 doit être commandé séparément pour les petits et moyens modèles
Le convertisseur à distance DMX doit être commandé séparément pour les modèles RGBW.
L'alimentation électrique à distance 48 Vdc pour faisceau 5D, doit être commandé séparément.

Prescription

To specify state:

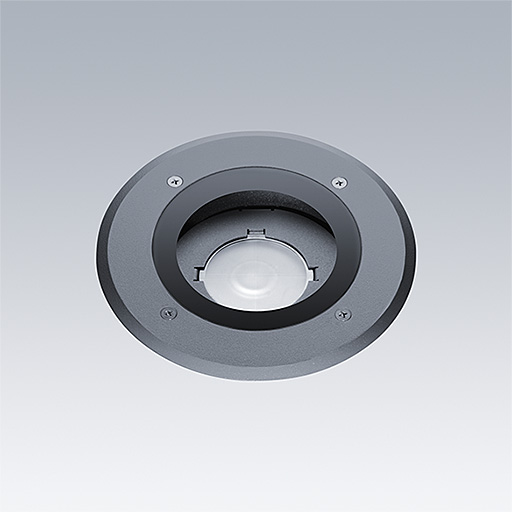

Round recessed luminaire in a pedestrian version, compatible with the pedestrian walkway on the luminaire. Available in several sizes (S, M, L and XL) and five standard colours (grey, anthracite, black, white and stainless steel). Recessed box for installation is supplied with the luminaire. Several light distributions are available: narrow, wide, medium (L and XL only), asymmetrical (L and XL only) and 5D beam. The optical module can be tilted (except for the wide beam and 5D beam).
Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential or public applications. An RGBW version is also available on sizes L and XL to create colour changing scenarios for events.
Non-dimmable driver integrated on S and M versions, with the option of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Integrated DALI2 driver on L and XL versions (except RGBW). Power Supply 48Vdc for 5D to order separately.
Robustness: IP67 & IK09.
As Thorn Cesar Opera Walk Over
