Axyl Opera Ceiling
Axyl Opera Ceiling est un plafonnier encastré idéal pour les zones urbaines, les projets résidentiels et les auvents
- Plafonnier rond encastré disponible en cinq couleurs standard (acier inoxydable, gris, anthracite, noir, blanc) et en trois tailles (de moyenne à très grande).
- Plusieurs distributions lumineuses disponibles : faisceau moyen, faisceau large, faisceau 5D (10-49°) pour la version L uniquement. Inclinaison +/- 15° permettant le réglage sur place de l'effet lumineux.
- Disponible en 2700 K, 3000 K, 4000 K et IRC 90.
- Le plafonnier Axyl Opera est disponible en version non dimmable ou DALI2 (convertisseur à distance en option pour les petites et moyennes tailles). Alimentation électrique à distance 48 Vcc pour faisceau 5D.
- IK09 & IP65
Matériaux et finition
Boîtier en aluminium moulé sous pression EN-AC 44300.
Collerette avant en acier inoxydable de qualité A4 ou en aluminium.
Vis avec traitement anti-galvanique Geomet.
Verre trempé.
Joints en silicone.
Finition avec double thermopoudrage.
Boîtier encastré en polypropylène.
Idéal pour C3 (classe de résistance à la corrosion standard conformément à la norme ISO 9223 : 2012)
Installation et montage
Installation avec fixation sur un mât ou avec boîtier en option pour un montage encastré dans un plafond.
Câble de sécurité pour les tailles Large et Très large.
Taille maximale de câble :
Plafonnier Axyl Opera Ceiling M HF : 3 x 1 mm² - 3 x 2,5 mm². Pré-câblé : 0,2 m
Plafonnier Axyl Opera Ceiling M RD : 2 x 1 mm² - 2 x 2,5 mm². Pré-câblé : 0,5 m
Plafonnier Axyl Opera Ceiling L/XL HFX : 5 x 1 mm² - 5 x 2,5 mm². Pré-câblé : 0,2 m
Le convertisseur à distance DALI-2 doit être commandé séparément pour les tailles moyennes.
L'alimentation électrique à distance 48 Vdc pour faisceau 5D, doit être commandé séparément.
Prescription
To specify state:
Square ceiling recessed luminaire available in several sizes (M, L and XL) and five standard colours (grey, anthracite, black, white and stainless steel). Recessed box for installation is supplied as optional accessories. Light distributions are available : medium, wide and 5D optics (allow adjustment of beam angle via DALI from 10 to 49°). The optical module can be tilted (except for 5D beam).
Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential or public applications.
Non-dimmable driver integrated on M versions, with the option of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Integrated DALI2 driver on L and XL versions.
Robustness: IP65 & IK09.
As Thorn Axyl Opera Ceiling

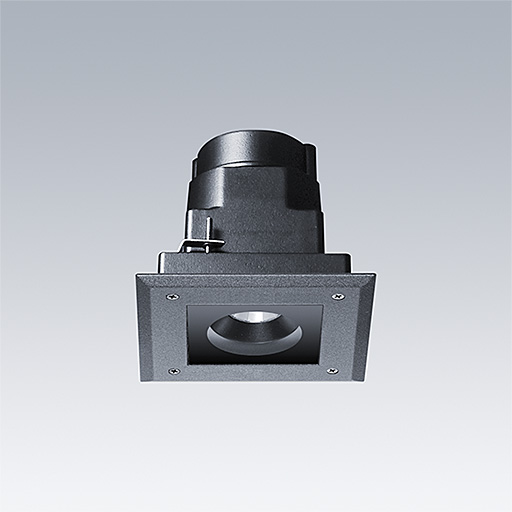

▼ Axyl Opera Cei, Medium Size Medium Beam
▼ Axyl Opera Cei, Medium Size Wide Beam
▼ Axyl Opera Cei, Large Size Medium Beam
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| AXYL OPERA L CEI 1L 927 MB HFX ANT | 13 | 1082 | LED | 3.71 | 96801009 | ||||
| AXYL OPERA L CEI 1L 927 MB HFX BK | 13 | 1082 | LED | 3.71 | 96801007 | ||||
| AXYL OPERA L CEI 1L 927 MB HFX GY | 13 | 1082 | LED | 3.71 | 96801008 | ||||
| AXYL OPERA L CEI 1L 927 MB HFX SS | 13 | 1082 | LED | 3.71 | 96801000 | ||||
| AXYL OPERA L CEI 1L 927 MB HFX WH | 13 | 1082 | LED | 3.71 | 96801006 | ||||
| AXYL OPERA L CEI 1L 930 MB HFX ANT | 13 | 1152 | LED | 3.71 | 96801017 | ||||
| AXYL OPERA L CEI 1L 930 MB HFX BK | 13 | 1152 | LED | 3.71 | 96801015 | ||||
| AXYL OPERA L CEI 1L 930 MB HFX GY | 13 | 1152 | LED | 3.71 | 96801016 | ||||
| AXYL OPERA L CEI 1L 930 MB HFX SS | 13 | 1152 | LED | 3.71 | 96801002 | ||||
| AXYL OPERA L CEI 1L 930 MB HFX WH | 13 | 1152 | LED | 3.71 | 96801014 | ||||
| AXYL OPERA L CEI 1L 940 MB HFX ANT | 13 | 1247 | LED | 3.71 | 96801013 | ||||
| AXYL OPERA L CEI 1L 940 MB HFX BK | 13 | 1247 | LED | 3.71 | 96801011 | ||||
| AXYL OPERA L CEI 1L 940 MB HFX GY | 13 | 1247 | LED | 3.71 | 96801012 | ||||
| AXYL OPERA L CEI 1L 940 MB HFX SS | 13 | 1247 | LED | 3.71 | 96801001 | ||||
| AXYL OPERA L CEI 1L 940 MB HFX WH | 13 | 1247 | LED | 3.71 | 96801010 |
▼ Axyl Opera Cei, Large Size Wide Beam
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| AXYL OPERA L CEI 1L 927 WB HFX ANT | 13 | 1064 | LED | 3.71 | 96801021 | ||||
| AXYL OPERA L CEI 1L 927 WB HFX BK | 13 | 1064 | LED | 3.71 | 96801019 | ||||
| AXYL OPERA L CEI 1L 927 WB HFX GY | 13 | 1064 | LED | 3.71 | 96801020 | ||||
| AXYL OPERA L CEI 1L 927 WB HFX SS | 13 | 1064 | LED | 3.71 | 96801003 | ||||
| AXYL OPERA L CEI 1L 927 WB HFX WH | 13 | 1064 | LED | 3.71 | 96801018 | ||||
| AXYL OPERA L CEI 1L 930 WB HFX ANT | 13 | 1120 | LED | 3.71 | 96801029 | ||||
| AXYL OPERA L CEI 1L 930 WB HFX BK | 13 | 1120 | LED | 3.71 | 96801027 | ||||
| AXYL OPERA L CEI 1L 930 WB HFX GY | 13 | 1120 | LED | 3.71 | 96801028 | ||||
| AXYL OPERA L CEI 1L 930 WB HFX SS | 13 | 1120 | LED | 3.71 | 96801005 | ||||
| AXYL OPERA L CEI 1L 930 WB HFX WH | 13 | 1120 | LED | 3.71 | 96801026 | ||||
| AXYL OPERA L CEI 1L 940 WB HFX ANT | 13 | 1176 | LED | 3.71 | 96801025 | ||||
| AXYL OPERA L CEI 1L 940 WB HFX BK | 13 | 1176 | LED | 3.71 | 96801023 | ||||
| AXYL OPERA L CEI 1L 940 WB HFX GY | 13 | 1176 | LED | 3.71 | 96801024 | ||||
| AXYL OPERA L CEI 1L 940 WB HFX SS | 13 | 1176 | LED | 3.71 | 96801004 | ||||
| AXYL OPERA L CEI 1L 940 WB HFX WH | 13 | 1176 | LED | 3.71 | 96801022 |

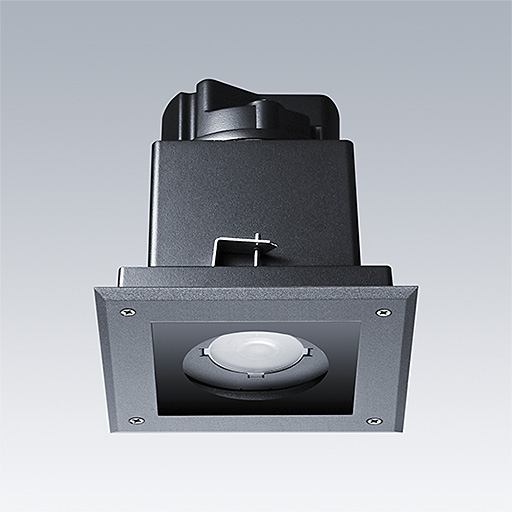

▼ Axyl Opera Cei, Large Size 5D Beam
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| AXYL OPERA L CEI 1L 927 5D HFX ANT | 16 | 864 | LED | 3.71 | 96801036 | ||||
| AXYL OPERA L CEI 1L 927 5D HFX BK | 16 | 864 | LED | 3.71 | 96801034 | ||||
| AXYL OPERA L CEI 1L 927 5D HFX GY | 16 | 864 | LED | 3.71 | 96801035 | ||||
| AXYL OPERA L CEI 1L 927 5D HFX SS | 16 | 864 | LED | 3.71 | 96801030 | ||||
| AXYL OPERA L CEI 1L 927 5D HFX WH | 16 | 864 | LED | 3.71 | 96801033 | ||||
| AXYL OPERA L CEI 1L 930 5D HFX ANT | 16 | 909 | LED | 3.71 | 96801044 | ||||
| AXYL OPERA L CEI 1L 930 5D HFX BK | 16 | 909 | LED | 3.71 | 96801042 | ||||
| AXYL OPERA L CEI 1L 930 5D HFX GY | 16 | 909 | LED | 3.71 | 96801043 | ||||
| AXYL OPERA L CEI 1L 930 5D HFX SS | 16 | 909 | LED | 3.71 | 96801032 | ||||
| AXYL OPERA L CEI 1L 930 5D HFX WH | 16 | 909 | LED | 3.71 | 96801041 | ||||
| AXYL OPERA L CEI 1L 940 5D HFX ANT | 16 | 954 | LED | 3.71 | 96801040 | ||||
| AXYL OPERA L CEI 1L 940 5D HFX BK | 16 | 954 | LED | 3.71 | 96801038 | ||||
| AXYL OPERA L CEI 1L 940 5D HFX GY | 16 | 954 | LED | 3.71 | 96801039 | ||||
| AXYL OPERA L CEI 1L 940 5D HFX SS | 16 | 954 | LED | 3.71 | 96801031 | ||||
| AXYL OPERA L CEI 1L 940 5D HFX WH | 16 | 954 | LED | 3.71 | 96801037 |

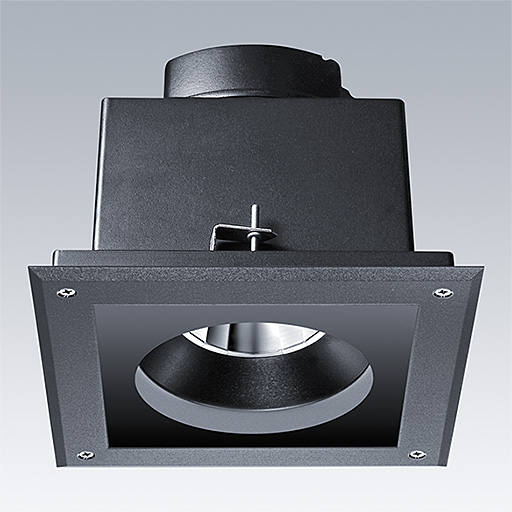

▼ Axyl Opera Cei, Extra L Size Medium Beam
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| AXYL OPERA XL CEI 1L 927 MB HFX ANT | 31 | 2375 | LED | 6.54 | 96801087 | ||||
| AXYL OPERA XL CEI 1L 927 MB HFX BK | 31 | 2375 | LED | 6.54 | 96801085 | ||||
| AXYL OPERA XL CEI 1L 927 MB HFX GY | 31 | 2375 | LED | 6.54 | 96801086 | ||||
| AXYL OPERA XL CEI 1L 927 MB HFX SS | 31 | 2375 | LED | 6.54 | 96801078 | ||||
| AXYL OPERA XL CEI 1L 927 MB HFX WH | 31 | 2375 | LED | 6.54 | 96801084 | ||||
| AXYL OPERA XL CEI 1L 930 MB HFX ANT | 31 | 2666 | LED | 6.54 | 96801095 | ||||
| AXYL OPERA XL CEI 1L 930 MB HFX BK | 31 | 2666 | LED | 6.54 | 96801093 | ||||
| AXYL OPERA XL CEI 1L 930 MB HFX GY | 31 | 2666 | LED | 6.54 | 96801094 | ||||
| AXYL OPERA XL CEI 1L 930 MB HFX SS | 31 | 2666 | LED | 6.54 | 96801080 | ||||
| AXYL OPERA XL CEI 1L 930 MB HFX WH | 31 | 2666 | LED | 6.54 | 96801092 | ||||
| AXYL OPERA XL CEI 1L 940 MB HFX ANT | 31 | 2836 | LED | 6.54 | 96801091 | ||||
| AXYL OPERA XL CEI 1L 940 MB HFX BK | 31 | 2836 | LED | 6.54 | 96801089 | ||||
| AXYL OPERA XL CEI 1L 940 MB HFX GY | 31 | 2836 | LED | 6.54 | 96801090 | ||||
| AXYL OPERA XL CEI 1L 940 MB HFX SS | 31 | 2836 | LED | 6.54 | 96801079 | ||||
| AXYL OPERA XL CEI 1L 940 MB HFX WH | 31 | 2836 | LED | 6.54 | 96801088 |
▼ Axyl Opera Cei, Extra L Size Wide Beam
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| AXYL OPERA XL CEI 1L 927 WB HFX ANT | 31 | 2415 | LED | 6.54 | 96801099 | ||||
| AXYL OPERA XL CEI 1L 927 WB HFX BK | 31 | 2415 | LED | 6.54 | 96801097 | ||||
| AXYL OPERA XL CEI 1L 927 WB HFX GY | 31 | 2415 | LED | 6.54 | 96801098 | ||||
| AXYL OPERA XL CEI 1L 927 WB HFX SS | 31 | 2415 | LED | 6.54 | 96801081 | ||||
| AXYL OPERA XL CEI 1L 927 WB HFX WH | 31 | 2415 | LED | 6.54 | 96801096 | ||||
| AXYL OPERA XL CEI 1L 930 WB HFX ANT | 31 | 2714 | LED | 6.54 | 96801107 | ||||
| AXYL OPERA XL CEI 1L 930 WB HFX BK | 31 | 2714 | LED | 6.54 | 96801105 | ||||
| AXYL OPERA XL CEI 1L 930 WB HFX GY | 31 | 2714 | LED | 6.54 | 96801106 | ||||
| AXYL OPERA XL CEI 1L 930 WB HFX SS | 31 | 2714 | LED | 6.54 | 96801083 | ||||
| AXYL OPERA XL CEI 1L 930 WB HFX WH | 31 | 2714 | LED | 6.54 | 96801104 | ||||
| AXYL OPERA XL CEI 1L 940 WB HFX ANT | 31 | 2890 | LED | 6.54 | 96801103 | ||||
| AXYL OPERA XL CEI 1L 940 WB HFX BK | 31 | 2890 | LED | 6.54 | 96801101 | ||||
| AXYL OPERA XL CEI 1L 940 WB HFX GY | 31 | 2890 | LED | 6.54 | 96801102 | ||||
| AXYL OPERA XL CEI 1L 940 WB HFX SS | 31 | 2890 | LED | 6.54 | 96801082 | ||||
| AXYL OPERA XL CEI 1L 940 WB HFX WH | 31 | 2890 | LED | 6.54 | 96801100 |
▼ Axyl Opera Ceiling, accessories
| Description | Poids (kg) | Code SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| AXYL OPERA L CEI RECESSED BOX | 0.65 | 96801045 | |||||||
| AXYL OPERA M CEI RECESSED BOX | 0.41 | 96800953 | |||||||
| AXYL OPERA XL CEI RECESSED BOX | 1.20 | 96801108 |
