Cesar Opera, walk over

  • Cesar Opera, walk over

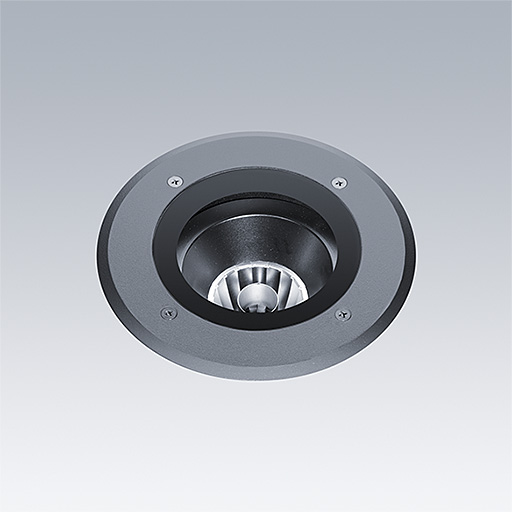

Cesar Opera Walk Over est un luminaire encastré dans le sol sur lequel il est possible de marcher, idéal pour les zones urbaines, les projets résidentiels et les parcs publics

  • Luminaire rond encastré dans le sol disponible en cinq couleurs standard (acier inoxydable, gris, anthracite, noir, blanc) et en quatre tailles (de petite à très grande)
  • Distribution lumineuse multiple : effet diffus large, faisceau étroit, faisceau moyen ou faisceau asymétrique
  • Inclinaison +/- 15° pour faisceau étroit - moyen
  • Inclinaison +/- 5° pour faisceau asymétrique
  • Disponible en 2700 K, 3000 K, 4000 K et IRC 90. RGBW est disponible pour les grandes et extra grandes tailles.
  • Cesar Opera Walk Over est disponible en version non dimmable ou DALI2 (convertisseur à distance en option pour les petites et moyennes tailles)
  • Charge = 1050 kg pour tailles L et XL
  • Charge = 510 kg pour tailles S et M

Matériaux et finition

Boîtier en aluminium moulé sous pression.
Collerette avant en acier inoxydable de qualité A4 ou en aluminium.
Verre trempé transparent.
Joints en silicone.
Vis en acier inoxydable de qualité A4.
Finition avec double thermopoudrage.
Boîtier encastré en polypropylène.
Idéal pour C3 (classe de résistance à la corrosion standard conformément à la norme ISO 9223:2012).

Installation et montage

Pour un montage dans le sol avec boîtier encastré inclus.
Taille maximale de câble :
- Opera Opera Petit/Moyen HF : 3 x 1 mm² - 3 x 2,5 mm². Pré-câblé : 0,5 m
- Opera Trim Petit/Moyen RD : 2 x 1 mm² - 2 x 2,5 mm². Pré-câblé : 0,5 m
- Opera Trim Grand/Très grand HFX : 5 x 1 mm² - 5 x 2,5 mm². Pré-câblé : 0,2 m
Le convertisseur à distance DALI-2 doit être commandé séparément pour les petits et moyens modèles
Le convertisseur à distance DMX doit être commandé séparément pour les modèles RGBW.

Prescription

To specify state:
Round recessed luminaire in a walk-over version, compatible with the pedestrian walkway on the luminaire. Available in several sizes (S, M, L and XL) and five standard colours (grey, anthracite, black, white and stainless steel). Recessed box for installation is supplied with the luminaire. Several light distributions are available: narrow, wide, medium (L and XL only), asymmetrical (L and XL only). The optical module can be tilted (except for the wide beam).
Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential or public applications. An RGBW version is also available on sizes L and XL to create colour changing scenarios for events.
Non-dimmable driver integrated on S and M versions, with the option of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Integrated DALI2 driver on L and XL versions (except RGBW).
Robustness: IP67 & IK09.
As Thorn Cesar Opera Walk Over

New Product
LumExpress Product
Produit eControl

▼ Cesar Opera, résistant au passage de piétons, petit, faisceau étroit

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA S WO 1L 927 NB HF ANT4160LED1.1596700721
CESAR OPERA S WO 1L 927 NB HF BK4160LED1.1596700719
CESAR OPERA S WO 1L 927 NB HF GY4160LED1.1596700720
CESAR OPERA S WO 1L 927 NB HF SS4160LED0.7096701113
CESAR OPERA S WO 1L 927 NB HF WH4160LED1.1596700718
CESAR OPERA S WO 1L 927 NB RD ANT4181LED0.6596701683
CESAR OPERA S WO 1L 927 NB RD BK4181LED0.6596701681
CESAR OPERA S WO 1L 927 NB RD GY4181LED0.6596701682
CESAR OPERA S WO 1L 927 NB RD SS4181LED0.7096701845
CESAR OPERA S WO 1L 927 NB RD WH4181LED0.6596701680
CESAR OPERA S WO 1L 930 NB HF ANT220LED1.1596700729
CESAR OPERA S WO 1L 930 NB HF BK220LED1.1596700727
CESAR OPERA S WO 1L 930 NB HF GY220LED1.1596700728
CESAR OPERA S WO 1L 930 NB HF SS4170LED0.7196701115
CESAR OPERA S WO 1L 930 NB HF WH220LED1.1596700726
CESAR OPERA S WO 1L 930 NB RD ANT4192LED0.6596701691
CESAR OPERA S WO 1L 930 NB RD BK4192LED0.6596701689
CESAR OPERA S WO 1L 930 NB RD GY4192LED0.6596701690
CESAR OPERA S WO 1L 930 NB RD SS4192LED0.7196701847
CESAR OPERA S WO 1L 930 NB RD WH4192LED0.6596701688
CESAR OPERA S WO 1L 940 NB HF ANT4193LED0.7796700725
CESAR OPERA S WO 1L 940 NB HF BK4193LED0.7796700723
CESAR OPERA S WO 1L 940 NB HF GY4193LED0.7796700724
CESAR OPERA S WO 1L 940 NB HF SS4193LED0.7196701114
CESAR OPERA S WO 1L 940 NB HF WH4193LED0.7796700722
CESAR OPERA S WO 1L 940 NB RD ANT4192LED0.7796701687
CESAR OPERA S WO 1L 940 NB RD BK4192LED0.7796701685
CESAR OPERA S WO 1L 940 NB RD GY4192LED0.7796701686
CESAR OPERA S WO 1L 940 NB RD SS4192LED0.7196701846
CESAR OPERA S WO 1L 940 NB RD WH4192LED0.7796701684

▼ Cesar Opera, résistant au passage de piétons, petit, faisceau large (diffuseur)

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA S WO 1L 927 WB HF ANT219LED0.5796700733
CESAR OPERA S WO 1L 927 WB HF BK219LED0.5796700731
CESAR OPERA S WO 1L 927 WB HF GY219LED0.5796700732
CESAR OPERA S WO 1L 927 WB HF SS219LED0.6196701116
CESAR OPERA S WO 1L 927 WB HF WH219LED0.5796700730
CESAR OPERA S WO 1L 927 WB RD ANT219LED0.5796701695
CESAR OPERA S WO 1L 927 WB RD BK219LED0.5796701693
CESAR OPERA S WO 1L 927 WB RD GY219LED0.5796701694
CESAR OPERA S WO 1L 927 WB RD SS219LED0.6196701848
CESAR OPERA S WO 1L 927 WB RD WH219LED0.5796701692
CESAR OPERA S WO 1L 930 WB HF ANT220LED0.5796700741
CESAR OPERA S WO 1L 930 WB HF BK220LED0.5796700739
CESAR OPERA S WO 1L 930 WB HF GY220LED0.5796700740
CESAR OPERA S WO 1L 930 WB HF SS220LED0.6196701118
CESAR OPERA S WO 1L 930 WB HF WH220LED0.5796700738
CESAR OPERA S WO 1L 930 WB RD ANT220LED0.5796701703
CESAR OPERA S WO 1L 930 WB RD BK220LED0.5796701701
CESAR OPERA S WO 1L 930 WB RD GY220LED0.5796701702
CESAR OPERA S WO 1L 930 WB RD SS220LED0.6196701850
CESAR OPERA S WO 1L 930 WB RD WH220LED0.5796701700
CESAR OPERA S WO 1L 940 WB HF ANT221LED0.5796700737
CESAR OPERA S WO 1L 940 WB HF BK221LED0.5796700735
CESAR OPERA S WO 1L 940 WB HF GY221LED0.5796700736
CESAR OPERA S WO 1L 940 WB HF SS221LED0.6196701117
CESAR OPERA S WO 1L 940 WB HF WH221LED0.5796700734
CESAR OPERA S WO 1L 940 WB RD ANT221LED0.5796701699
CESAR OPERA S WO 1L 940 WB RD BK221LED0.5796701697
CESAR OPERA S WO 1L 940 WB RD GY221LED0.5796701698
CESAR OPERA S WO 1L 940 WB RD SS221LED0.6196701849
CESAR OPERA S WO 1L 940 WB RD WH221LED0.5796701696

▼ Cesar Opera, résistant au passage de piétons, moyen, faisceau large (diffuseur)

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA M WO 1L 927 WB HF ANT330LED1.2396700709
CESAR OPERA M WO 1L 927 WB HF BK330LED1.2396700707
CESAR OPERA M WO 1L 927 WB HF GY330LED1.2396700708
CESAR OPERA M WO 1L 927 WB HF SS330LED1.3196701110
CESAR OPERA M WO 1L 927 WB HF WH330LED1.2396700706
CESAR OPERA M WO 1L 927 WB RD ANT330LED1.2396701671
CESAR OPERA M WO 1L 927 WB RD BK330LED1.2396701669
CESAR OPERA M WO 1L 927 WB RD GY330LED1.2396701670
CESAR OPERA M WO 1L 927 WB RD SS330LED1.3196701842
CESAR OPERA M WO 1L 927 WB RD WH330LED1.2396701668
CESAR OPERA M WO 1L 930 WB HF ANT331LED1.2396700717
CESAR OPERA M WO 1L 930 WB HF BK331LED1.2396700715
CESAR OPERA M WO 1L 930 WB HF GY331LED1.2396700716
CESAR OPERA M WO 1L 930 WB HF SS331LED1.3396701112
CESAR OPERA M WO 1L 930 WB HF WH331LED1.2396700714
CESAR OPERA M WO 1L 930 WB RD ANT331LED1.2396701679
CESAR OPERA M WO 1L 930 WB RD BK331LED1.2396701677
CESAR OPERA M WO 1L 930 WB RD GY331LED1.2396701678
CESAR OPERA M WO 1L 930 WB RD SS331LED1.3396701844
CESAR OPERA M WO 1L 930 WB RD WH331LED1.2396701676
CESAR OPERA M WO 1L 940 WB HF ANT333LED1.2396700713
CESAR OPERA M WO 1L 940 WB HF BK333LED1.2396700711
CESAR OPERA M WO 1L 940 WB HF GY333LED1.2396700712
CESAR OPERA M WO 1L 940 WB HF SS333LED1.3196701111
CESAR OPERA M WO 1L 940 WB HF WH333LED1.2396700710
CESAR OPERA M WO 1L 940 WB RD ANT333LED1.2396701675
CESAR OPERA M WO 1L 940 WB RD BK333LED1.2396701673
CESAR OPERA M WO 1L 940 WB RD GY333LED1.2396701674
CESAR OPERA M WO 1L 940 WB RD SS333LED1.3196701843
CESAR OPERA M WO 1L 940 WB RD WH333LED1.2396701672

▼ Cesar Opera, résistant au passage de piétons, moyen, faisceau étroit

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA M WO 2L 927 NB HF ANT6283LED1.4296700781
CESAR OPERA M WO 2L 927 NB HF BK6283LED1.4296700779
CESAR OPERA M WO 2L 927 NB HF GY6283LED1.4296700780
CESAR OPERA M WO 2L 927 NB HF SS6283LED1.5096701128
CESAR OPERA M WO 2L 927 NB HF WH6283LED1.4296700778
CESAR OPERA M WO 2L 927 NB RD ANT6283LED1.4296701743
CESAR OPERA M WO 2L 927 NB RD BK6283LED1.4296701741
CESAR OPERA M WO 2L 927 NB RD GY6283LED1.4296701742
CESAR OPERA M WO 2L 927 NB RD SS6283LED1.5096701860
CESAR OPERA M WO 2L 927 NB RD WH6283LED1.4296701740
CESAR OPERA M WO 2L 930 NB HF ANT6306LED1.4296700789
CESAR OPERA M WO 2L 930 NB HF BK6306LED1.4296700787
CESAR OPERA M WO 2L 930 NB HF GY6306LED1.4296700788
CESAR OPERA M WO 2L 930 NB HF SS6306LED1.4896701130
CESAR OPERA M WO 2L 930 NB HF WH6306LED1.4296700786
CESAR OPERA M WO 2L 930 NB RD ANT6306LED1.4296701751
CESAR OPERA M WO 2L 930 NB RD BK6306LED1.4296701749
CESAR OPERA M WO 2L 930 NB RD GY6306LED1.4296701750
CESAR OPERA M WO 2L 930 NB RD SS6306LED1.4896701862
CESAR OPERA M WO 2L 930 NB RD WH6306LED1.4296701748
CESAR OPERA M WO 2L 940 NB HF ANT6343LED1.4296700785
CESAR OPERA M WO 2L 940 NB HF BK6343LED1.4296700783
CESAR OPERA M WO 2L 940 NB HF GY6343LED1.4296700784
CESAR OPERA M WO 2L 940 NB HF SS6343LED1.5096701129
CESAR OPERA M WO 2L 940 NB HF WH6343LED1.4296700782
CESAR OPERA M WO 2L 940 NB RD ANT6343LED1.4296701747
CESAR OPERA M WO 2L 940 NB RD BK6343LED1.4296701745
CESAR OPERA M WO 2L 940 NB RD GY6343LED1.4296701746
CESAR OPERA M WO 2L 940 NB RD SS6343LED1.5096701861
CESAR OPERA M WO 2L 940 NB RD WH6343LED1.4296701744

▼ Cesar Opera, résistant au passage de piétons, moyen, faisceau asymétrique

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA M WO 2L 927 AS HF ANT6281LED1.4196700793
CESAR OPERA M WO 2L 927 AS HF BK6281LED1.4196700791
CESAR OPERA M WO 2L 927 AS HF GY6281LED1.4196700792
CESAR OPERA M WO 2L 927 AS HF SS6281LED1.4796701131
CESAR OPERA M WO 2L 927 AS HF WH6281LED1.4196700790
CESAR OPERA M WO 2L 927 AS RD ANT6281LED1.4196701755
CESAR OPERA M WO 2L 927 AS RD BK6281LED1.4196701753
CESAR OPERA M WO 2L 927 AS RD GY6281LED1.4196701754
CESAR OPERA M WO 2L 927 AS RD SS6281LED1.4796701863
CESAR OPERA M WO 2L 927 AS RD WH6281LED1.4196701752
CESAR OPERA M WO 2L 930 AS HF ANT6306LED1.4196700801
CESAR OPERA M WO 2L 930 AS HF BK6306LED1.4196700799
CESAR OPERA M WO 2L 930 AS HF GY6306LED1.4196700800
CESAR OPERA M WO 2L 930 AS HF SS6306LED1.4996701133
CESAR OPERA M WO 2L 930 AS HF WH6306LED1.4196700798
CESAR OPERA M WO 2L 930 AS RD ANT6306LED1.4196701763
CESAR OPERA M WO 2L 930 AS RD BK6306LED1.4196701761
CESAR OPERA M WO 2L 930 AS RD GY6306LED1.4196701762
CESAR OPERA M WO 2L 930 AS RD SS6306LED1.4996701865
CESAR OPERA M WO 2L 930 AS RD WH6306LED1.4196701760
CESAR OPERA M WO 2L 940 AS HF ANT6358LED1.4196700797
CESAR OPERA M WO 2L 940 AS HF BK6358LED1.4196700795
CESAR OPERA M WO 2L 940 AS HF GY6358LED1.4196700796
CESAR OPERA M WO 2L 940 AS HF SS6358LED1.4996701132
CESAR OPERA M WO 2L 940 AS HF WH6358LED1.4196700794
CESAR OPERA M WO 2L 940 AS RD ANT6358LED1.4196701759
CESAR OPERA M WO 2L 940 AS RD BK6358LED1.4196701757
CESAR OPERA M WO 2L 940 AS RD GY6358LED1.4196701758
CESAR OPERA M WO 2L 940 AS RD SS6358LED1.4996701864
CESAR OPERA M WO 2L 940 AS RD WH6358LED1.4196701756

▼ Cesar Opera, résistant au passage de piétons, moyen, faisceau moyen

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA M WO 1L 927 MB HF ANT9411LED1.4196700805
CESAR OPERA M WO 1L 927 MB HF BK9411LED1.4196700803
CESAR OPERA M WO 1L 927 MB HF GY9411LED1.4196700804
CESAR OPERA M WO 1L 927 MB HF SS9411LED1.1596701134
CESAR OPERA M WO 1L 927 MB HF WH9411LED1.4196700802
CESAR OPERA M WO 1L 927 MB RD ANT9411LED1.4196701767
CESAR OPERA M WO 1L 927 MB RD BK9411LED1.4196701765
CESAR OPERA M WO 1L 927 MB RD GY9411LED1.4196701766
CESAR OPERA M WO 1L 927 MB RD SS9411LED1.4196701866
CESAR OPERA M WO 1L 927 MB RD WH9411LED1.4196701764
CESAR OPERA M WO 1L 930 MB HF ANT9434LED1.4196700813
CESAR OPERA M WO 1L 930 MB HF BK9434LED1.4196700811
CESAR OPERA M WO 1L 930 MB HF GY9434LED1.4196700812
CESAR OPERA M WO 1L 930 MB HF SS9434LED1.1596701136
CESAR OPERA M WO 1L 930 MB HF WH9434LED1.4196700810
CESAR OPERA M WO 1L 930 MB RD ANT9434LED1.4196701775
CESAR OPERA M WO 1L 930 MB RD BK9434LED1.4196701773
CESAR OPERA M WO 1L 930 MB RD GY9434LED1.4196701774
CESAR OPERA M WO 1L 930 MB RD SS9434LED1.4196701868
CESAR OPERA M WO 1L 930 MB RD WH9434LED1.4196701772
CESAR OPERA M WO 1L 940 MB HF ANT9458LED1.4196700809
CESAR OPERA M WO 1L 940 MB HF BK9458LED1.4196700807
CESAR OPERA M WO 1L 940 MB HF GY9458LED1.4196700808
CESAR OPERA M WO 1L 940 MB HF SS9458LED1.1596701135
CESAR OPERA M WO 1L 940 MB HF WH9458LED1.4196700806
CESAR OPERA M WO 1L 940 MB RD ANT9458LED1.4196701771
CESAR OPERA M WO 1L 940 MB RD BK9458LED1.4196701769
CESAR OPERA M WO 1L 940 MB RD GY9458LED1.4196701770
CESAR OPERA M WO 1L 940 MB RD SS9458LED1.4196701867
CESAR OPERA M WO 1L 940 MB RD WH9458LED1.4196701768

▼ Cesar Opera, résistant au passage de piétons, grand, faisceau large (diffuseur)

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA L WO 24L 927 WB HFX ANT1057LED2.9496700853
CESAR OPERA L WO 24L 927 WB HFX BK1057LED2.9496700851
CESAR OPERA L WO 24L 927 WB HFX GY1057LED2.9496700852
CESAR OPERA L WO 24L 927 WB HFX SS1057LED3.0396701146
CESAR OPERA L WO 24L 927 WB HFX WH1057LED2.9496700850
CESAR OPERA L WO 24L 930 WB HFX ANT1092LED2.9496700861
CESAR OPERA L WO 24L 930 WB HFX BK1092LED2.9496700859
CESAR OPERA L WO 24L 930 WB HFX GY1092LED2.9496700860
CESAR OPERA L WO 24L 930 WB HFX SS1092LED3.0396701148
CESAR OPERA L WO 24L 930 WB HFX WH1092LED2.9496700858
CESAR OPERA L WO 24L 940 WB HFX ANT10101LED2.9496700857
CESAR OPERA L WO 24L 940 WB HFX BK10101LED2.9496700855
CESAR OPERA L WO 24L 940 WB HFX GY10101LED2.9496700856
CESAR OPERA L WO 24L 940 WB HFX SS10101LED3.0396701147
CESAR OPERA L WO 24L 940 WB HFX WH10101LED2.9496700854

▼ Cesar Opera, résistant au passage de piétons, grand, faisceau étroit

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA L WO 9L 927 NB HFX ANT171011LED3.4496700877
CESAR OPERA L WO 9L 927 NB HFX BK171011LED3.4496700875
CESAR OPERA L WO 9L 927 NB HFX GY171011LED3.4496700876
CESAR OPERA L WO 9L 927 NB HFX SS171011LED3.5496701153
CESAR OPERA L WO 9L 927 NB HFX WH171011LED3.4496700874
CESAR OPERA L WO 9L 930 NB HFX ANT171143LED3.4596700885
CESAR OPERA L WO 9L 930 NB HFX BK171143LED3.4596700883
CESAR OPERA L WO 9L 930 NB HFX GY171143LED3.4596700884
CESAR OPERA L WO 9L 930 NB HFX SS171143LED3.5496701155
CESAR OPERA L WO 9L 930 NB HFX WH171143LED3.4596700882
CESAR OPERA L WO 9L 940 NB HFX ANT171179LED3.4596700881
CESAR OPERA L WO 9L 940 NB HFX BK171179LED3.4596700879
CESAR OPERA L WO 9L 940 NB HFX GY171179LED3.4596700880
CESAR OPERA L WO 9L 940 NB HFX SS171179LED3.5496701154
CESAR OPERA L WO 9L 940 NB HFX WH171179LED3.4596700878

▼ Cesar Opera, résistant au passage de piétons, grand, faisceau asymétrique

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA L WO 9L 927 AS HFX ANT171083LED3.4396700889
CESAR OPERA L WO 9L 927 AS HFX BK171083LED3.4396700887
CESAR OPERA L WO 9L 927 AS HFX GY171083LED3.4396700888
CESAR OPERA L WO 9L 927 AS HFX SS171083LED3.5296701156
CESAR OPERA L WO 9L 927 AS HFX WH171083LED3.4396700886
CESAR OPERA L WO 9L 930 AS HFX ANT171188LED3.4396700897
CESAR OPERA L WO 9L 930 AS HFX BK171188LED3.4396700895
CESAR OPERA L WO 9L 930 AS HFX GY171188LED3.4396700896
CESAR OPERA L WO 9L 930 AS HFX SS171188LED3.5296701158
CESAR OPERA L WO 9L 930 AS HFX WH171188LED3.4396700894
CESAR OPERA L WO 9L 940 AS HFX ANT171250LED3.4396700893
CESAR OPERA L WO 9L 940 AS HFX BK171250LED3.4396700891
CESAR OPERA L WO 9L 940 AS HFX GY171250LED3.4396700892
CESAR OPERA L WO 9L 940 AS HFX SS171250LED3.5296701157
CESAR OPERA L WO 9L 940 AS HFX WH171250LED3.4396700890

▼ Cesar Opera, résistant au passage de piétons, grand, faisceau moyen

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA L WO 1L 927 MB HFX ANT15940LED3.4396700901
CESAR OPERA L WO 1L 927 MB HFX BK15940LED3.4396700899
CESAR OPERA L WO 1L 927 MB HFX GY15940LED3.4396700900
CESAR OPERA L WO 1L 927 MB HFX SS15940LED1.1596701159
CESAR OPERA L WO 1L 927 MB HFX WH15940LED3.4396700898
CESAR OPERA L WO 1L 930 MB HFX ANT15973LED3.4396700909
CESAR OPERA L WO 1L 930 MB HFX BK15973LED3.4396700907
CESAR OPERA L WO 1L 930 MB HFX GY15973LED3.4396700908
CESAR OPERA L WO 1L 930 MB HFX SS15973LED1.1596701161
CESAR OPERA L WO 1L 930 MB HFX WH15973LED3.4396700906
CESAR OPERA L WO 1L 940 MB HFX ANT151027LED3.4396700905
CESAR OPERA L WO 1L 940 MB HFX BK151027LED3.4396700903
CESAR OPERA L WO 1L 940 MB HFX GY151027LED3.4396700904
CESAR OPERA L WO 1L 940 MB HFX SS151027LED1.1596701160
CESAR OPERA L WO 1L 940 MB HFX WH151027LED3.4396700902

▼ Cesar Opera, résistant au passage de piétons, très grand, faisceau étroit

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA XL WO 16L 927 NB HFX ANT332229LED6.1096701004
CESAR OPERA XL WO 16L 927 NB HFX BK332229LED6.1096701002
CESAR OPERA XL WO 16L 927 NB HFX GY332229LED6.1096701003
CESAR OPERA XL WO 16L 927 NB HFX SS332229LED6.2396700988
CESAR OPERA XL WO 16L 927 NB HFX WH332229LED6.1096701001
CESAR OPERA XL WO 16L 930 NB HFX ANT332427LED6.1096701012
CESAR OPERA XL WO 16L 930 NB HFX BK332427LED6.1096701010
CESAR OPERA XL WO 16L 930 NB HFX GY332427LED6.1096701011
CESAR OPERA XL WO 16L 930 NB HFX SS332427LED6.2396700990
CESAR OPERA XL WO 16L 930 NB HFX WH332427LED6.1096701009
CESAR OPERA XL WO 16L 940 NB HFX ANT332636LED6.1096701008
CESAR OPERA XL WO 16L 940 NB HFX BK332636LED6.1096701006
CESAR OPERA XL WO 16L 940 NB HFX GY332636LED6.1096701007
CESAR OPERA XL WO 16L 940 NB HFX SS332636LED6.2396700989
CESAR OPERA XL WO 16L 940 NB HFX WH332636LED6.1096701005

▼ Cesar Opera, résistant au passage de piétons, très grand, faisceau asymétrique

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA XL WO 16L 927 AS HFX ANT332377LED6.0296701016
CESAR OPERA XL WO 16L 927 AS HFX BK332377LED6.0296701014
CESAR OPERA XL WO 16L 927 AS HFX GY332377LED6.0296701015
CESAR OPERA XL WO 16L 927 AS HFX SS332377LED6.1596700991
CESAR OPERA XL WO 16L 927 AS HFX WH332377LED6.0296701013
CESAR OPERA XL WO 16L 930 AS HFX ANT332407LED6.0296701024
CESAR OPERA XL WO 16L 930 AS HFX BK332407LED6.0296701022
CESAR OPERA XL WO 16L 930 AS HFX GY332407LED6.0296701023
CESAR OPERA XL WO 16L 930 AS HFX SS332407LED6.1596700993
CESAR OPERA XL WO 16L 930 AS HFX WH332407LED6.0296701021
CESAR OPERA XL WO 16L 940 AS HFX ANT332672LED6.0296701020
CESAR OPERA XL WO 16L 940 AS HFX BK332672LED6.0296701018
CESAR OPERA XL WO 16L 940 AS HFX GY332672LED6.0296701019
CESAR OPERA XL WO 16L 940 AS HFX SS332672LED6.1596700992
CESAR OPERA XL WO 16L 940 AS HFX WH332672LED6.0296701017

▼ Cesar Opera, résistant au passage de piétons, très grand, faisceau moyen

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA XL WO 16L 927 MB HFX SS332512LED6.1596700994
CESAR OPERA XL WO 16L 930 MB HFX SS332602LED6.1596700996
CESAR OPERA XL WO 16L 940 MB HFX SS332790LED6.1596700995
CESAR OPERA XL WO 1L 927 MB HFX ANT332512LED6.1596701028
CESAR OPERA XL WO 1L 927 MB HFX BK332512LED6.1596701026
CESAR OPERA XL WO 1L 927 MB HFX GY332512LED6.1596701027
CESAR OPERA XL WO 1L 927 MB HFX WH332512LED6.1596701025
CESAR OPERA XL WO 1L 930 MB HFX ANT332602LED6.1596701036
CESAR OPERA XL WO 1L 930 MB HFX BK332602LED6.1596701034
CESAR OPERA XL WO 1L 930 MB HFX GY332602LED6.1596701035
CESAR OPERA XL WO 1L 930 MB HFX WH332602LED6.1596701033
CESAR OPERA XL WO 1L 940 MB HFX ANT332790LED6.1596701032
CESAR OPERA XL WO 1L 940 MB HFX BK332790LED6.1596701030
CESAR OPERA XL WO 1L 940 MB HFX GY332790LED6.1596701031
CESAR OPERA XL WO 1L 940 MB HFX WH332790LED6.1596701029

▼ Cesar Opera, résistant au passage de piétons, très grand, faisceau large (diffuseur)

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA XL WO 30L 927 WB HFX BLK11263LED4.9196701038
CESAR OPERA XL WO 30L 927 WB HFX ANT11263LED4.9196701040
CESAR OPERA XL WO 30L 927 WB HFX GRY11263LED4.9196701039
CESAR OPERA XL WO 30L 927 WB HFX SS11263LED5.1196700998
CESAR OPERA XL WO 30L 927 WB HFX WH11263LED4.9196701037
CESAR OPERA XL WO 30L 930 WB HFX ANT11289LED4.9196701048
CESAR OPERA XL WO 30L 930 WB HFX BLK11289LED4.9196701046
CESAR OPERA XL WO 30L 930 WB HFX GRY11289LED4.9196701047
CESAR OPERA XL WO 30L 930 WB HFX SS11289LED5.1196701000
CESAR OPERA XL WO 30L 930 WB HFX WHI11289LED4.9196701045
CESAR OPERA XL WO 30L 940 WB HFX ANT11320LED4.9196701044
CESAR OPERA XL WO 30L 940 WB HFX BLK11320LED4.9196701042
CESAR OPERA XL WO 30L 940 WB HFX GRY11320LED4.9196701043
CESAR OPERA XL WO 30L 940 WB HFX SS11320LED5.1196700999
CESAR OPERA XL WO 30L 940 WB HFX WHI11320LED4.9196701041

▼ Cesar Opera, résistant au passage de piétons, RGBW

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
CESAR OPERA L WO 3L RGBW MB PWM SS20640LED3.3696701152
CESAR OPERA XL WO 5L RGBW 930 MB PWM SS301124LED7.0196700997
