Axyl Trim

  • Axyl Trim

Axyl Trim est un luminaire mural encastré classique disponible en deux tailles et idéal pour la signalisation des chemins

  • Élégante applique murale encastrée disponible en quatre couleurs standard (gris, anthracite, noir, blanc) et en deux tailles : petit carré et grand rectangle
  • Distribution lumineuse multiple grâce à différentes vasques. Opale pour un éclairage diffus. Grille ou déflecteur pour une distribution lumineuse asymétrique et une application respectueuse du ciel étoilé
  • Disponible en 2700 K, 3000 K, 4000 K et IRC 90
  • Axyl Trim est disponible en version non dimmable ou DALI2 (convertisseur à distance en option)

Matériaux et finition

Boîtier en aluminium moulé sous pression.
Joints en silicone.
Vis en acier inoxydable de qualité A4.
Finition avec double thermopoudrage.
Idéal pour C3 (classe de résistance à la corrosion standard conformément à la norme ISO 9223:2012).

Installation et montage

Pour un montage encastré avec un boîtier encastré à commander séparément : 96700399 (Petit (S) / carré) - 96700290 (Grand (L) / rectangulaire).
Vis de fixation et rondelles livrées avec le produit.
Taille maximale de câble :
- Axyl Trim Petit HF : 3 x 1 mm² - 3 x 4 mm²
- Axyl Trim Petit RD : 2 x 1 mm² - 2 x 4 mm²
- Axyl Trim Grand HF : 3 x 1 mm² - 3 x 2,5 mm²
- Axyl Trim Grand RD : 2 x 1 mm² - 2 x 2,5 mm²
Le convertisseur à distance DALI-2 doit être commandé séparément.

Prescription

To specify state:
Recessed wall luminaire available in rectangular or square shapes and in four standard colours (grey, anthracite, black, white). Axyl Trim is installed using a flush-mounted box (not supplied), which must be ordered separately. Several light distributions are available and linked to a different type of face : performance, opal, louvre, visor, barn doors to meet different needs.
Available in 2700K, 3000K and 4000K with a CRI of 90 ideal for residential or public applications.
Non-dimmable driver integrated, possibility of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Robustness: IP65 & IK08.
Recessed box: 96700399 (S / Square) - 96700290 (L / Rectangle).
As Thorn Axyl Trim

New Product
LumExpress Product
Produit eControl

▼ Axyl Trim, version Performance

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
AXYL TRIM L OPAL 6L927 S/S HF ANT11455LED1.4896700306
AXYL TRIM L OPAL 6L927 S/S HF BK11455LED1.4896700304
AXYL TRIM L OPAL 6L927 S/S HF GY11455LED1.4896700305
AXYL TRIM L OPAL 6L927 S/S HF WH11455LED1.4896700303
AXYL TRIM L OPAL 6L927 S/S RD ANT11455LED1.4896701371
AXYL TRIM L OPAL 6L927 S/S RD BK11455LED1.4896701369
AXYL TRIM L OPAL 6L927 S/S RD GY11455LED1.4896701370
AXYL TRIM L OPAL 6L927 S/S RD WH11455LED1.4896701368
AXYL TRIM L OPAL 6L930 S/S HF ANT11479LED1.3696700314
AXYL TRIM L OPAL 6L930 S/S HF BK11479LED1.3696700312
AXYL TRIM L OPAL 6L930 S/S HF GY11479LED1.3696700313
AXYL TRIM L OPAL 6L930 S/S HF WH11479LED1.3696700311
AXYL TRIM L OPAL 6L930 S/S RD ANT11479LED1.3696701379
AXYL TRIM L OPAL 6L930 S/S RD BK11479LED1.3696701377
AXYL TRIM L OPAL 6L930 S/S RD GY11479LED1.3696701378
AXYL TRIM L OPAL 6L930 S/S RD WH11479LED1.3696701376
AXYL TRIM L OPAL 6L940 S/S HF ANT11479LED1.3896700310
AXYL TRIM L OPAL 6L940 S/S HF BK11479LED1.3896700308
AXYL TRIM L OPAL 6L940 S/S HF GY11479LED1.3896700309
AXYL TRIM L OPAL 6L940 S/S HF WH11479LED1.3896700307
AXYL TRIM L OPAL 6L940 S/S RD ANT11479LED1.3896701375
AXYL TRIM L OPAL 6L940 S/S RD BK11479LED1.3896701373
AXYL TRIM L OPAL 6L940 S/S RD GY11479LED1.3896701374
AXYL TRIM L OPAL 6L940 S/S RD WH11479LED1.3896701372
AXYL TRIM S OPAL 1L927 S/S HF ANT391LED0.6096700354
AXYL TRIM S OPAL 1L927 S/S HF BK391LED0.6096700352
AXYL TRIM S OPAL 1L927 S/S HF GY391LED0.6096700353
AXYL TRIM S OPAL 1L927 S/S HF WH391LED0.6096700351
AXYL TRIM S OPAL 1L927 S/S RD ANT391LED0.6096701419
AXYL TRIM S OPAL 1L927 S/S RD BK391LED0.6096701417
AXYL TRIM S OPAL 1L927 S/S RD GY391LED0.6096701418
AXYL TRIM S OPAL 1L927 S/S RD WH391LED0.6096701416
AXYL TRIM S OPAL 1L930 S/S HF ANT397LED0.6096700362
AXYL TRIM S OPAL 1L930 S/S HF BK397LED0.6096700360
AXYL TRIM S OPAL 1L930 S/S HF GY397LED0.6096700361
AXYL TRIM S OPAL 1L930 S/S HF WH397LED0.6096700359
AXYL TRIM S OPAL 1L930 S/S RD ANT397LED0.6096701427
AXYL TRIM S OPAL 1L930 S/S RD BK397LED0.6096701425
AXYL TRIM S OPAL 1L930 S/S RD GY397LED0.6096701426
AXYL TRIM S OPAL 1L930 S/S RD WH397LED0.6096701424
AXYL TRIM S OPAL 1L940 S/S HF ANT397LED0.6096700358
AXYL TRIM S OPAL 1L940 S/S HF BK397LED0.6096700356
AXYL TRIM S OPAL 1L940 S/S HF GY397LED0.6096700357
AXYL TRIM S OPAL 1L940 S/S HF WH397LED0.6096700355
AXYL TRIM S OPAL 1L940 S/S RD ANT397LED0.6096701423
AXYL TRIM S OPAL 1L940 S/S RD BK397LED0.6096701421
AXYL TRIM S OPAL 1L940 S/S RD GY397LED0.6096701422
AXYL TRIM S OPAL 1L940 S/S RD WH397LED0.6096701420

▼ Axyl Trim, version avec grille

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
AXYL TRIM L GRID 6L927 A/S HF ANT11120LED1.4896700318
AXYL TRIM L GRID 6L927 A/S HF BK11120LED1.4896700316
AXYL TRIM L GRID 6L927 A/S HF GY11120LED1.4896700317
AXYL TRIM L GRID 6L927 A/S HF WH11120LED1.4896700315
AXYL TRIM L GRID 6L927 A/S RD ANT11120LED1.4896701383
AXYL TRIM L GRID 6L927 A/S RD BK11120LED1.4896701381
AXYL TRIM L GRID 6L927 A/S RD GY11120LED1.4896701382
AXYL TRIM L GRID 6L927 A/S RD WH11120LED1.4896701380
AXYL TRIM L GRID 6L930 A/S HF ANT11128LED1.3696700326
AXYL TRIM L GRID 6L930 A/S HF BK11128LED1.3696700324
AXYL TRIM L GRID 6L930 A/S HF GY11128LED1.3696700325
AXYL TRIM L GRID 6L930 A/S HF WH11128LED1.3696700323
AXYL TRIM L GRID 6L930 A/S RD ANT11128LED1.3696701391
AXYL TRIM L GRID 6L930 A/S RD BK11128LED1.3696701389
AXYL TRIM L GRID 6L930 A/S RD GY11128LED1.3696701390
AXYL TRIM L GRID 6L930 A/S RD WH11128LED1.3696701388
AXYL TRIM L GRID 6L940 A/S HF ANT11128LED1.3896700322
AXYL TRIM L GRID 6L940 A/S HF BK11128LED1.3896700320
AXYL TRIM L GRID 6L940 A/S HF GY11128LED1.3896700321
AXYL TRIM L GRID 6L940 A/S HF WH11128LED1.3896700319
AXYL TRIM L GRID 6L940 A/S RD ANT11128LED1.3896701387
AXYL TRIM L GRID 6L940 A/S RD BK11128LED1.3896701385
AXYL TRIM L GRID 6L940 A/S RD GY11128LED1.3896701386
AXYL TRIM L GRID 6L940 A/S RD WH11128LED1.3896701384
AXYL TRIM S GRID 1L927 A/S HF ANT321LED0.6096700366
AXYL TRIM S GRID 1L927 A/S HF BK321LED0.6096700364
AXYL TRIM S GRID 1L927 A/S HF GY321LED0.6096700365
AXYL TRIM S GRID 1L927 A/S HF WH321LED0.6096700363
AXYL TRIM S GRID 1L927 A/S RD ANT321LED0.6096701431
AXYL TRIM S GRID 1L927 A/S RD BK321LED0.6096701429
AXYL TRIM S GRID 1L927 A/S RD GY321LED0.6096701430
AXYL TRIM S GRID 1L927 A/S RD WH321LED0.6096701428
AXYL TRIM S GRID 1L930 A/S HF ANT322LED0.6096700374
AXYL TRIM S GRID 1L930 A/S HF BK322LED0.6096700372
AXYL TRIM S GRID 1L930 A/S HF GY322LED0.6096700373
AXYL TRIM S GRID 1L930 A/S HF WH322LED0.6096700371
AXYL TRIM S GRID 1L930 A/S RD ANT322LED0.6096701439
AXYL TRIM S GRID 1L930 A/S RD BK322LED0.6096701437
AXYL TRIM S GRID 1L930 A/S RD GY322LED0.6096701438
AXYL TRIM S GRID 1L930 A/S RD WH322LED0.6096701436
AXYL TRIM S GRID 1L940 A/S HF ANT323LED0.6096700370
AXYL TRIM S GRID 1L940 A/S HF BK323LED0.6096700368
AXYL TRIM S GRID 1L940 A/S HF GY323LED0.6096700369
AXYL TRIM S GRID 1L940 A/S HF WH323LED0.6096700367
AXYL TRIM S GRID 1L940 A/S RD ANT323LED0.6096701435
AXYL TRIM S GRID 1L940 A/S RD BK323LED0.6096701433
AXYL TRIM S GRID 1L940 A/S RD GY323LED0.6096701434
AXYL TRIM S GRID 1L940 A/S RD WH323LED0.6096701432

▼ Axyl Trim, version avec pare-soleil

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
AXYL TRIM L VISO 6L927 A/S HF ANT11272LED1.4896700330
AXYL TRIM L VISO 6L927 A/S HF BK11272LED1.4896700328
AXYL TRIM L VISO 6L927 A/S HF GY11272LED1.4896700329
AXYL TRIM L VISO 6L927 A/S HF WH11272LED1.4896700327
AXYL TRIM L VISO 6L927 A/S RD ANT11272LED1.4896701395
AXYL TRIM L VISO 6L927 A/S RD BK11272LED1.4896701393
AXYL TRIM L VISO 6L927 A/S RD GY11272LED1.4896701394
AXYL TRIM L VISO 6L927 A/S RD WH11272LED1.4896701392
AXYL TRIM L VISO 6L930 A/S HF ANT11289LED1.3696700338
AXYL TRIM L VISO 6L930 A/S HF BK11289LED1.3696700336
AXYL TRIM L VISO 6L930 A/S HF GY11289LED1.3696700337
AXYL TRIM L VISO 6L930 A/S HF WH11289LED1.3696700335
AXYL TRIM L VISO 6L930 A/S RD ANT11289LED1.3696701403
AXYL TRIM L VISO 6L930 A/S RD BK11289LED1.3696701401
AXYL TRIM L VISO 6L930 A/S RD GY11289LED1.3696701402
AXYL TRIM L VISO 6L930 A/S RD WH11289LED1.3696701400
AXYL TRIM L VISO 6L940 A/S HF ANT11289LED1.3896700334
AXYL TRIM L VISO 6L940 A/S HF BK11289LED1.3896700332
AXYL TRIM L VISO 6L940 A/S HF GY11289LED1.3896700333
AXYL TRIM L VISO 6L940 A/S HF WH11289LED1.3896700331
AXYL TRIM L VISO 6L940 A/S RD ANT11289LED1.3896701399
AXYL TRIM L VISO 6L940 A/S RD BK11289LED1.3896701397
AXYL TRIM L VISO 6L940 A/S RD GY11289LED1.3896701398
AXYL TRIM L VISO 6L940 A/S RD WH11289LED1.3896701396
AXYL TRIM S VISO 1L927 A/S HF ANT346LED0.6096700378
AXYL TRIM S VISO 1L927 A/S HF BK346LED0.6096700376
AXYL TRIM S VISO 1L927 A/S HF GY346LED0.6096700377
AXYL TRIM S VISO 1L927 A/S HF WH346LED0.6096700375
AXYL TRIM S VISO 1L927 A/S RD ANT346LED0.6096701443
AXYL TRIM S VISO 1L927 A/S RD BK346LED0.6096701441
AXYL TRIM S VISO 1L927 A/S RD GY346LED0.6096701442
AXYL TRIM S VISO 1L927 A/S RD WH346LED0.6096701440
AXYL TRIM S VISO 1L930 A/S HF ANT349LED0.6096700386
AXYL TRIM S VISO 1L930 A/S HF BK349LED0.6096700384
AXYL TRIM S VISO 1L930 A/S HF GY349LED0.6096700385
AXYL TRIM S VISO 1L930 A/S HF WH349LED0.6096700383
AXYL TRIM S VISO 1L930 A/S RD ANT349LED0.6096701451
AXYL TRIM S VISO 1L930 A/S RD BK349LED0.6096701449
AXYL TRIM S VISO 1L930 A/S RD GY349LED0.6096701450
AXYL TRIM S VISO 1L930 A/S RD WH349LED0.6096701448
AXYL TRIM S VISO 1L940 A/S HF ANT352LED0.6096700382
AXYL TRIM S VISO 1L940 A/S HF BK352LED0.6096700380
AXYL TRIM S VISO 1L940 A/S HF GY352LED0.6096700381
AXYL TRIM S VISO 1L940 A/S HF WH352LED0.6096700379
AXYL TRIM S VISO 1L940 A/S RD ANT352LED0.6096701447
AXYL TRIM S VISO 1L940 A/S RD BK352LED0.6096701445
AXYL TRIM S VISO 1L940 A/S RD GY352LED0.6096701446
AXYL TRIM S VISO 1L940 A/S RD WH352LED0.6096701444

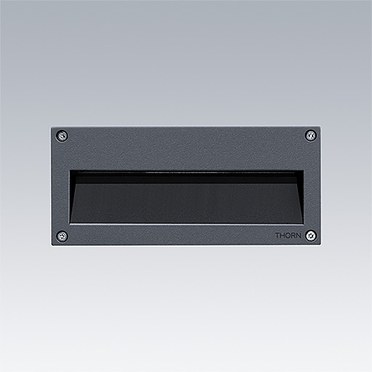

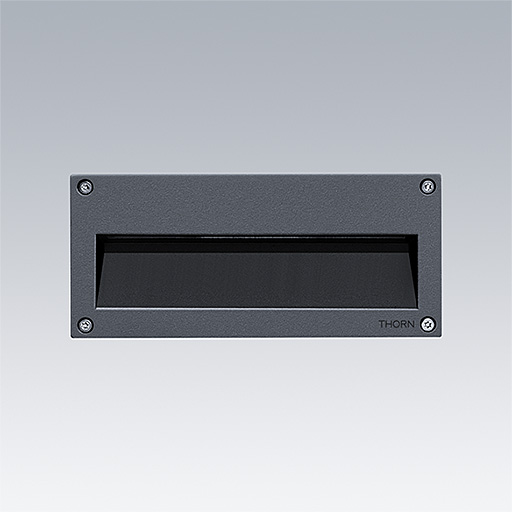

▼ Axyl Trim, version avec déflecteur

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
AXYL TRIM L BAFF 6L927 A/S HF ANT11154LED1.4896700342
AXYL TRIM L BAFF 6L927 A/S HF BK11154LED1.4896700340
AXYL TRIM L BAFF 6L927 A/S HF GY11154LED1.4896700341
AXYL TRIM L BAFF 6L927 A/S HF WH11154LED1.4896700339
AXYL TRIM L BAFF 6L927 A/S RD ANT11154LED1.4896701407
AXYL TRIM L BAFF 6L927 A/S RD BK11154LED1.4896701405
AXYL TRIM L BAFF 6L927 A/S RD GY11154LED1.4896701406
AXYL TRIM L BAFF 6L927 A/S RD WH11154LED1.4896701404
AXYL TRIM L BAFF 6L930 A/S HF ANT11164LED1.3696700350
AXYL TRIM L BAFF 6L930 A/S HF BK11164LED1.3696700348
AXYL TRIM L BAFF 6L930 A/S HF GY11164LED1.3696700349
AXYL TRIM L BAFF 6L930 A/S HF WH11164LED1.3696700347
AXYL TRIM L BAFF 6L930 A/S RD ANT11164LED1.3696701415
AXYL TRIM L BAFF 6L930 A/S RD BK11164LED1.3696701413
AXYL TRIM L BAFF 6L930 A/S RD GY11164LED1.3696701414
AXYL TRIM L BAFF 6L930 A/S RD WH11164LED1.3696701412
AXYL TRIM L BAFF 6L940 A/S HF ANT11163LED1.3896700346
AXYL TRIM L BAFF 6L940 A/S HF BK11163LED1.3896700344
AXYL TRIM L BAFF 6L940 A/S HF GY11163LED1.3896700345
AXYL TRIM L BAFF 6L940 A/S HF WH11163LED1.3896700343
AXYL TRIM L BAFF 6L940 A/S RD ANT11163LED1.3896701411
AXYL TRIM L BAFF 6L940 A/S RD BK11163LED1.3896701409
AXYL TRIM L BAFF 6L940 A/S RD GY11163LED1.3896701410
AXYL TRIM L BAFF 6L940 A/S RD WH11163LED1.3896701408
AXYL TRIM S BAFF 1L927 A/S HF ANT335LED0.6096700390
AXYL TRIM S BAFF 1L927 A/S HF BK335LED0.6096700388
AXYL TRIM S BAFF 1L927 A/S HF GY335LED0.6096700389
AXYL TRIM S BAFF 1L927 A/S HF WH335LED0.6096700387
AXYL TRIM S BAFF 1L927 A/S RD ANT335LED0.6096701455
AXYL TRIM S BAFF 1L927 A/S RD BK335LED0.6096701453
AXYL TRIM S BAFF 1L927 A/S RD GY335LED0.6096701454
AXYL TRIM S BAFF 1L927 A/S RD WH335LED0.6096701452
AXYL TRIM S BAFF 1L930 A/S HF ANT337LED0.6096700398
AXYL TRIM S BAFF 1L930 A/S HF BK337LED0.6096700396
AXYL TRIM S BAFF 1L930 A/S HF GY337LED0.6096700397
AXYL TRIM S BAFF 1L930 A/S HF WH337LED0.6096700395
AXYL TRIM S BAFF 1L930 A/S RD ANT337LED0.6096701463
AXYL TRIM S BAFF 1L930 A/S RD BK337LED0.6096701461
AXYL TRIM S BAFF 1L930 A/S RD GY337LED0.6096701462
AXYL TRIM S BAFF 1L930 A/S RD WH337LED0.6096701460
AXYL TRIM S BAFF 1L940 A/S HF ANT337LED0.6096700394
AXYL TRIM S BAFF 1L940 A/S HF BK337LED0.6096700392
AXYL TRIM S BAFF 1L940 A/S HF GY337LED0.6096700393
AXYL TRIM S BAFF 1L940 A/S HF WH337LED0.6096700391
AXYL TRIM S BAFF 1L940 A/S RD ANT337LED0.6096701459
AXYL TRIM S BAFF 1L940 A/S RD BK337LED0.6096701457
AXYL TRIM S BAFF 1L940 A/S RD GY337LED0.6096701458
AXYL TRIM S BAFF 1L940 A/S RD WH337LED0.6096701456

▼ Axyl Trim, boîtier encastré

Description   Poids (kg)Code SAP
AXYL TRIM RBOX L1.1596700290
AXYL TRIM RBOX S0.3296700399
