Olsys Area

  • Olsys Area
  • Olsys Area

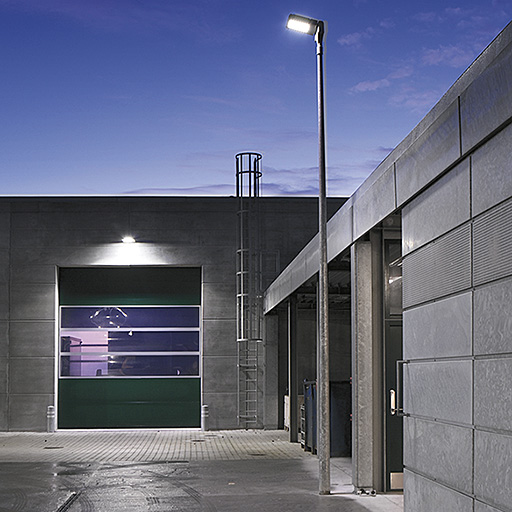

Vielseitiger LED-Fluter für flächige Beleuchtung, Anstrahlung und Strassenbeleuchtung in einheitlichem Design

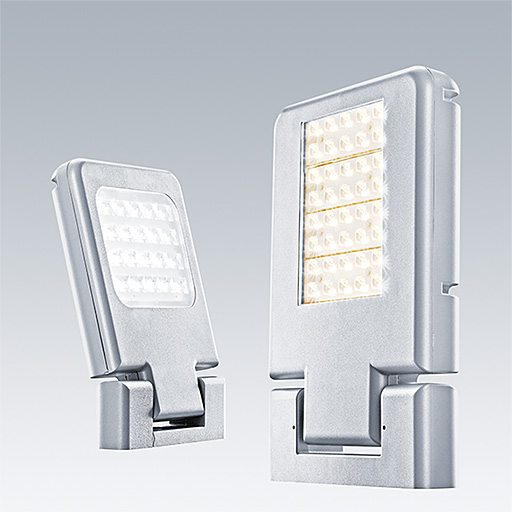

  • Große Auswahl: zwei Baugrößen, vier Leistungsversionen, zwei Farbtemperaturen, Neigungswinkel -90°/+90° und drei Montageoptionen
  • Sehr niedrige Betriebskosten durch optimiertes Thermomanagement für eine Lebensdauer von bis zu 80.000 Betriebsstunden (L70, 25°)
  • Äußerst beständiges Gehäuse aus Aluminiumdruckguss, IP66/IK08, inklusive 10kV-Überspannungsschutz
  • Minimalistisches Design, passend zu Olsys Street Leuchten, Masten, Auslegern, ergibt eine harmonische Integration in die Umgebung

Material/Ausfertigung

Gehäuse: Aluminiumdruckguss (AS9U), Standard-Korrosionsklasse: C3, pulverbeschichtet in THORN HELLGRAU (ähnlich RAL 9006)
Abdeckung: Baugröße 1: klares PC, UV-stabilisiert; Baugröße 2: gehärtetes Glas
Optiken: Baugröße 1: PC; Baugröße 2: Mikroreflektoren aus stark reflektierendem, anodisiertem Aluminium
Schrauben: Edelstahl

Installation/Montage

Size 2 supplied pre-wired with connector.
Delivered ready to install for wall mounting, knock out on the side of the base for cabling when it is not integrated within the wall. For ground mounting please order the spike accessory. Possibility to post top mount with Olsys street accessories. Dedicated column package for urban area lighting or car parks. Delivered with factory integral gear, all supplied in one box.
Maintenance: access to gear (replaceable) via 4 screws from the canopy.
Suitable for ambient temperature range -30 to 50°C

Spezifikation

Ausschreibungstext:
LED-Flutlichtstrahler, IP66, erhältlich mit 24/45/70/90 W (bis zu 8530 lm) asymmetrischer Lichtverteilung.
Thorn Olsys Area oder gleichwertig

Neues Produkt
LumExpress Produkt
eControl Produkt

Olsys 1 Area

Olsys 1 Area, Montagezubehör

Beschreibung   Gewicht (Kg)Artikelnummer
OLSYS1 MTP 60/761.4096262298
OLSYS1 MTP 60/76 x22.1096262299
OLSYS1 SPIKE1.3096262334

Olsys 2 Area

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
OLSYS2 36L70 730 CL1 AREA A/S789895LED9.8596633556
OLSYS2 36L70 730 CL2 AREA A/S789895LED9.8596633555
OLSYS2 36L70 740 CL1 AREA A/S7810375LED9.8596633552
OLSYS2 36L70 740 CL2 AREA A/S7810375LED9.8596633551
OLSYS2 48L70 730 CL1 AREA A/S10413030LED9.8596633558
OLSYS2 48L70 730 CL2 AREA A/S10413030LED9.8596633557
OLSYS2 48L70 740 CL1 AREA A/S10413665LED9.8596633554
OLSYS2 48L70 740 CL2 AREA A/S10413665LED9.8596633553

Olsys 2 Area, Montagezubehör

Beschreibung   Gewicht (Kg)Artikelnummer
OLSYS2 MTP 60/762.9096262304
OLSYS2 MTP 60/76 x25.0096262305
